Black Annealed Wires

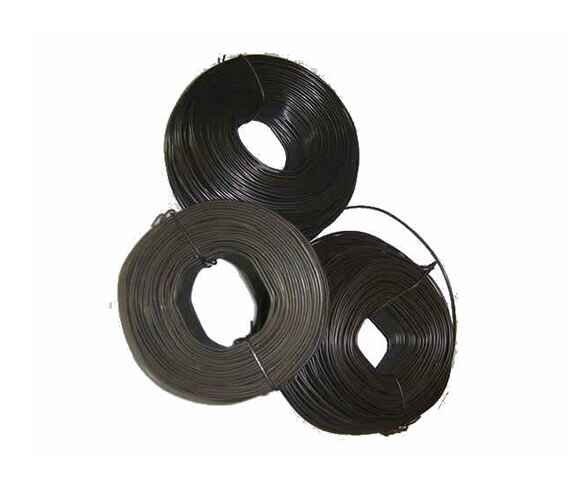

Black Annealed Wire
Precision Drawell is offering Black Annealed wire. We have state of the art annealing furnace. Our black annealed wire is known for its superior strength and high quality. Clients can avail this at the most competitive prices
Annealed Wire is made of carbon steel wire, used for weaving, baling in general. Applied for home use and the construction
Annealed wire is obtained by means of thermal annealing, endowing it with the properties it needs for its main use - setting. This wire is deployed both in civil construction and in agriculture. Hence, in civil construction annealed wire, also known as "burnt wire" is used for iron setting. In agriculture annealed wire is used for bailing hay
Finish - Blade and Bright annealed wire
Size - 1.50 - 6.00 mm
Material - Carbon Steel
Black steel wire specifications
- Wire diameter: 3.3 mm / 3.5 mm / 3.75 mm / 5 mm
- Weight of each coil: 200 kg
- Inside diameter of each coil: 476 mm
- Packing: Weaving bags and Plastic
- Yield Point: 320 N/mm2
- Tensile Strength: 480 N/mm2
- Elongation: 33% (Note: 5.5 mm wire rod before wire drawling)
- Elongation: 5-6% (Note: Diameter 3.3 mm wire rod drawling)
- Chemical: Carbon: 0.09% Si: 0.17% Mn: 0.57% P: 0.024% S: 0.02%
Black annealed wire and twist wire specifications
Black annealed wire:
- Diameter: 1.15 mm.
- Tensile strength: 36.1 kg/mm2, 36.4 kg/mm2
- Elongation: 24%
- Packing: 4.8 kg × 5 /coil / internal diameter 23 cm, outer diameter 34 cm
Twisted wires:
- Diameter: 1.16 mm
- Tensile strength: 40.9 kg/mm2, 39.4 kg/mm2
- Elongation: 25%
- Packing: 4.6 kg × 5 than 11 coil make one bundle internal diameter of coil: 37 cm, outer diameter 47 cm
Black annealed binding wire specification
| Thickness | Width | Technical | Surface treatment | Application | Color |
|---|---|---|---|---|---|
| 1.00 mm | 3/4" | cooled rolled | polished | construction | bright |
Black annealed binding wire
| Material | Weight | Wire grade |
|---|---|---|
| Q195 | 25 kg/coils | BWG16, BWG18, BWG20 |
- Black Annealed Wire 2.9 mm, 25 kg/coil
- Packaging: PVC inside, hessian cloth outside
- 10 coils/bundle secured with 4 nos steel straps
- Specs: Tensile strength 350 n/mm2 (Very soft, annealing for 9 hours)
- Covered with oil for anti rusting
Soft black annealed wire specifications as following
| Surface Finish | Surface Finish | Diameter | Coil Weight | Coil Inner Diameter | Coil Outside Diameter | Packing |
|---|---|---|---|---|---|---|
| Bright | (Shiny) | 1.6 mm (+/- 0.05 mm) | 20 kg per coil (+/- 2 kg) | 15 cm (+2 cm / -2 cm) | 26 cm (+2 cm / -2 cm) | Shrink wrapped inside, inner PVC strips with outer weaving cloth and oiled |
